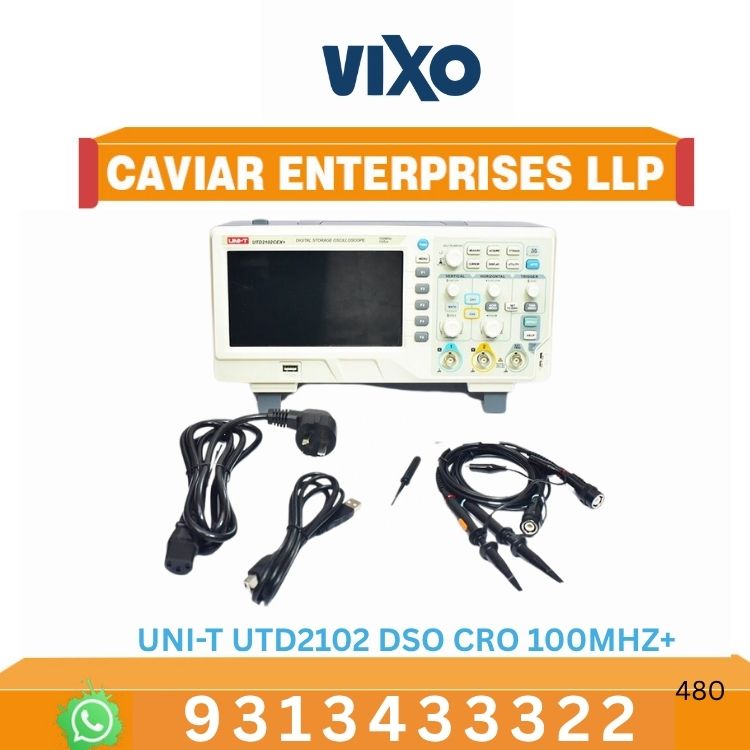

UNI-T UTD2102CEX+ Digital Storage Oscilloscope- 100 MHz+ and 2 Channel







UTD2000CEX+ SERIES- Best seller



The CEX+ provides a richer trigger mode, 34 kinds of automatic parameter measurement and common mathematical operation functions, and optimizes the panel operation, which greatly improves the work efficiency and can easily cope with the measurement needs of complex signals.

• Dual Channel, 100 MHz+



• Real Time Sample Rate: 1GSa/s



• Memory Depth 64kpts, Waveform Acquisition Rate ≥5000wfms/s



• Display range 8div x16 div and has a new Auto set strategy ,which can easily cope with complex test scenarios



• HD color LCD screen display



• Multi-language optional ,With 9 languages, it can meet the needs of users in more countries



• Multi-frequency square wave optional, output standard square wave 10Hz, 100Hz, 1kHz,10kHz optional



• Various parameter measurement and waveform recording functions









FEATURES OF DSO:-



BRAND – UNI-T



PRODUCT TYPE – DIGITAL STORAGE OSCILLOSCOPE



MODEL – UTD210CEX+



TEMPERATURE – (23+-) Degree Celsius



ITEMTESTED BY TESTER – APPEARANCE TEST, FUNCTION TEST, PERFORMANCE TEST AND SAFETY TEST



PROCEDURE – WI-QIS-1264



SERIAL NO. - AD02723380689



HUMIDITY – (20/70) % RH







Specifications UTD2102CEX+

Channels 2

Bandwidth 100MHz

Sample Rate 1GS/s

Rise Time ≤3.5ns

Memory Depth 64kpts

Waveform Acquisition Rate ≥5000wfms/s

Vertical Sensitivity (V/div) 1mV/div~20V/div

Time base Range (s/div) 2ns/div~50s/div

Storage Setup, Wave, Bitmap

Trigger Modes Edge, Pulse, Alternate, Video

Interface USB OTG







Condition - Brand New



Warranty – 1 Year



No Return.



Weight - 4 kg
